Managing Netobjects

You can define following types of netobjects:

  • Autonomous Systems
  • Domains
  • Networks (IP Ranges)
  • organisation RIPE Handles

If your organisation has a RIPE handle, we strongly recommend claiming it first. Once approved, all related AS and networks will be automatically populated and synced with changes in the RIPE. It will also make the verification easier and quicker.

Info

We update data sourced from the RIPE (e.g. IP ranges in AS) in the Constituency Portal once a day.

Claiming a netobject

First, select the appropriate netobject type from the menu:

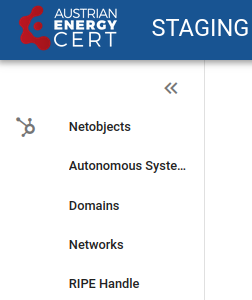

Netobjects menu You can claim AS, Domain, Network (IP Range) or a RIPE handle.

In the opened page, please click Claim [type].

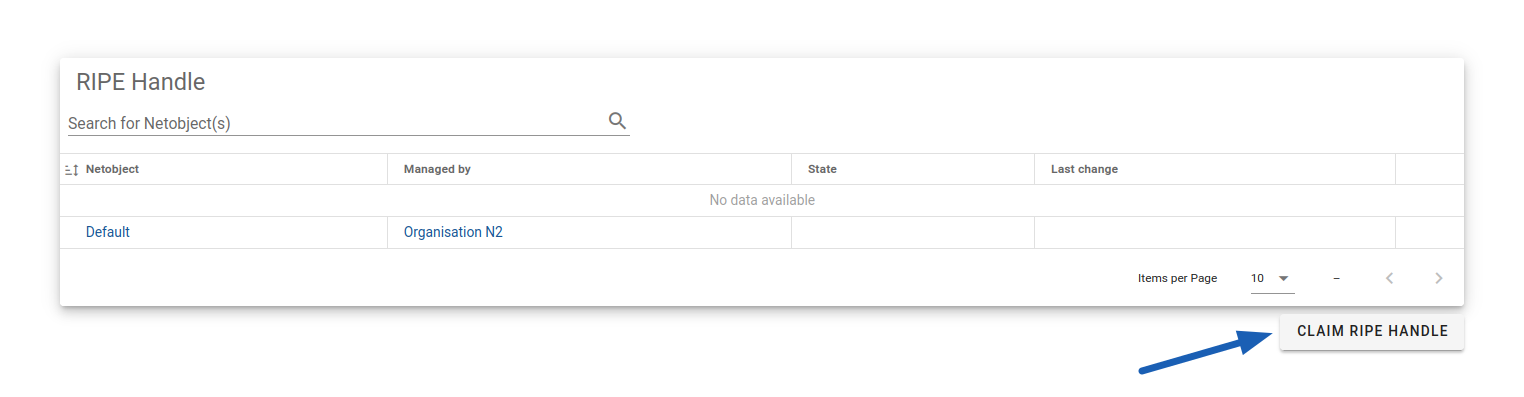

Empty RIPE handles page Location of the button to claim a new object - for example, a RIPE handle

Then provide the objects details. The expected format is:

  • for Autonomous Systems - the object number, e.g. for AS123 type 123
  • for domains - fully qualified domain, the more generic the better, e.g. use cert.at instead of tuency.cert.at to handle all subdomains, if applicable
  • for networks - a CIDR format defining the IP range with the network prefix, e.g. 192.168.0.0/24
  • for RIPE handles - an organisation handle in form ORG-[id]-RIPE, e.g. ORG-sOm3-RIPE

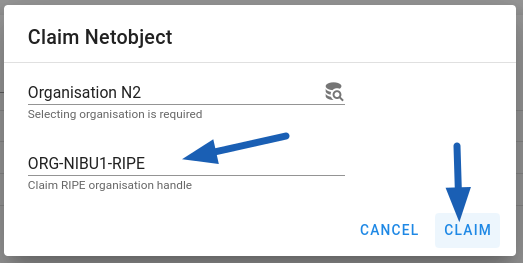

Claiming pop-up Claiming a RIPE handle

Right after claiming a new AS or RIPE Handle, you won't see the data populated from the RIPE. Your object will be in pending state until our administrators verify it:

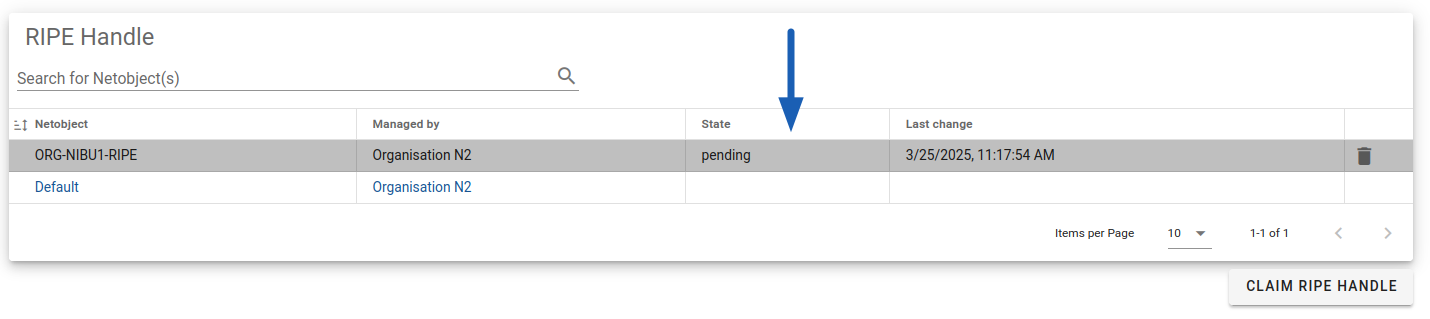

Pending claim A claim is pending until we approve it

Once approved, you will see data populated from the RIPE. You will get an email notification when we approve your claim.

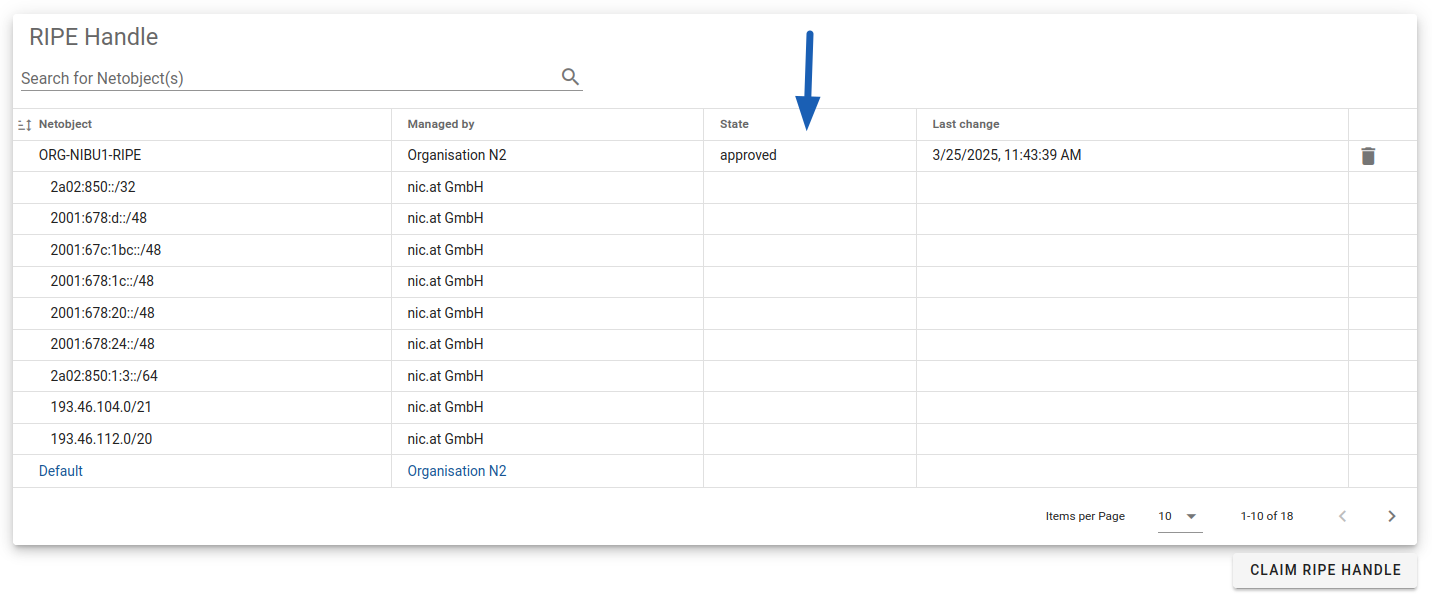

Approved claim An approved claim shows related IP ranges. Note that they may be on more than a one page

Known Visibility Issues

When you have an approved RIPE Handle, you will see related ranges only on the RIPE Handle page; this includes all connected AS - even though you won't see AS numbers at that moment. Similarly, for directly claimed AS, you will see propagated IP ranges only on the Autonomous System page.

Both issues will be fixed in upcoming releases to make usage more intuitive.
